Advantages
1. Graphite block have High density, high temperature resistance, high mechanical strength and strong chemical stability.
2. Graphite block can machining into different size and shape.
3. Graphite block have Corrosion resistant and alkali resistance.
4.Graphite block have Excellent thermal shock resistance, electrical conductivity and thermal conductivity.
5. Graphite block have strong wear resistance and lubrication performance.
6.Our Graphite block have longer using life.

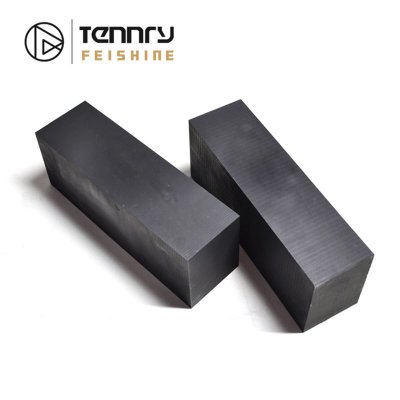

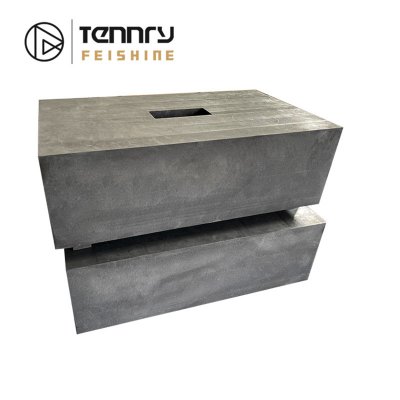

Shapes: square block and round block,or as your requirements.
We supply many different standard graphite materials suitable for different applications,like Furnace lining, Aluminum casting,Rotary kiln,Electrolysis,EDM etc.
We support OEM /ODM service, in order to meet the different market, and fulfill various requirements and needs, custom made ones are also available. We can design and machine different Graphite Block as your every special request or drawing.
Technical index:
Isostatic graphite technical data
Index |
Units | FSDK-4 | FSDK-6S | FSDK-7 | FSDK-8 | FSDK-9 | FSDW-7 | FSDW-8 |
Bulk density | ≥g/cm3 | 1.72 | 1.86 | 1.83 | 1.86 | 1.9 | 1.85 | 1.91 |
Electric resistivity | μΩ.m | 10-13 | 10-13 | 11-14 | 10-14 | 10-14 | 11-13 | 11-13 |
Compressive strength | Mpa | 65 | 100 | 110 | 120 | 125 | 115 | 135 |
Flexural strength | Mpa | 30 | 48 | 50 | 55 | 60 | 51 | 60 |
Shore hardness | 40 | 65 | 67 | 72 | 75 | 65 | 70 | |
Ash content/ purification | ppm | 500/50 | 500/50 | 500/50 | 500/50 | 500/50 | 500/50 | 500/50 |
Average granularity | μm | 25 | 12 | 8 | 6 | 2-4 | 8-10 | 8-10 |
Coefficient of thermal expansion | ×10-6/℃ | 5 | 4.2 | 3.8 | 4 | 3.9 | 5.6 | 5.85 |
Young’s modulus | Gpa | 9.2 | 11 | 11 | 12 | 12 | 11 | 12 |
Applications | >Vacuum furnace >Sintering | >Photovoltaic >Vacuum furnace >Melting gold crucible
| >EDM | >EDM >Melting gold crucible | >EDM >Melting gold crucible | >EDM >Photovoltaic | >EDM >Photovoltaic |
Mold graphite technical data
Index | Units | FSM-1 | FSM-2 | FSMK-3 | FSMK-5 | FSMK-5S | FSMW-4 | FSMW-5 |
Bulk density | ≥g/cm3 | 1.6 | 1.7 | 1.68 | 1.8 | 1.85 | 1.75 | 1.85 |
Electric resistivity | μΩ.m | 8 | 7.5 | 9-13 | 8-10 | 8-10 | 8.5 | 8.5 |
Compressive strength | Mpa | 28 | 36 | 45 | 70 | 80 | 65 | 85 |
Flexural strength | Mpa | 14 | 18 | 20 | 35 | 40 | 38 | 46 |
Shore hardness | 25 | 30 | 35 | 48 | 55 | 42 | 48 | |
Ash content/ purification | ppm | 2000/- | 2000/- | 1000/50 | 1000/50 | 1000/50 | 1000/50 | 1000/50 |
Average granularity | μm | 2000,4000 | 800,2000 | 15-45 | 15-45 | 15-45 | 14-45 | 14-45 |
Coefficient of thermal expansion | ×10-6/℃ | 5.8 | 5.7 | 5.7 | 4.9 | 4.8 | 5.46 | 4.75 |
Young’s modulus | Gpa | 7 | 8 | 8 | 9.5 | 10 | 9 | 11.8 |
Product Name | Industry | Application |
Crucible,Boat,Dish,etc. | Metallurgy | Melting,refining and analysis |
Dies,Molds,Ingot Chassis,etc. | EDM graphite electrodes,semiconductor manufacturing,iron,steel and nonferrous metal making,continuous casting,metallurgy pressing machine | |
Graphite Roller,etc. | Heat treatment of steel plate in furnace | |
Conduit,Skateboard,etc. | Aluminum molding | |
Graphite Pipe | Guard pipe for measuring temperature,blowpipe,etc | |
Graphite Block | Masonry furnace and other heat resistance material | |
Chemical Equipment | Chemistry | Heat exchanger,reaction tower,distillation columns,absorption equipment,centrifugal pumps,etc |
Electrolytic Plate | Salt solution and baking molten salt electrolyte | |
Electrolytic Mercury | NaCI electrolyte | |
Grounded Anode | Electrical anticorrosion | |
Motor Brush | Electricity | Commutator,slipping ring |
Current Collector | Skate,slide,trolley | |
Contact | Switches,relays | |
Mercury Ferry And Electronic Pipe | Electronics | Anode,grid pole,repeller pole,ignition pole of the Mercury rectifier and anode,grid electrode |
Graphite Bearing | Machinery | High temperature resistance sliding bearing |
Sealing Element | Sealing ring,stuffing box seal,packing seal | |
Product Element | Braking in plane and vehicle |
We usually quote within 24 hours after getting your detailed requirements,like size,quantity etc. .
If it is an urgent order, you can call us directly.
Yes, samples are available for test our quality.
Samples delivery time will be about 7-10 days.
The lead time is based on the quantity,production time about 7-12 days.For graphite product,apply Dual-use items license need about 45working days.
We accept FOB, CFR, CIF, EXW, etc. You can choose the most convenient way for you. Besides that, we can also shipping by Air and Express.

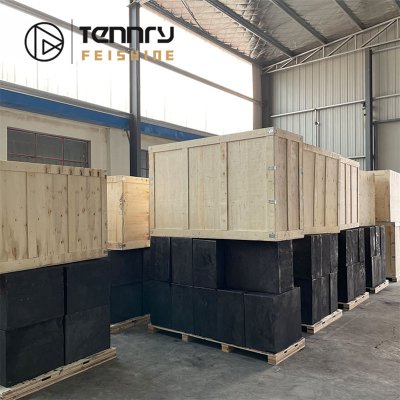

We are packed in customized wooden case, or according to your requirements.
Address:#40 BUILDING,NO.702 SHANHE ROAD, CHENGYANG DISTRICT,QINGDAO, SHANDONG,CHINA
