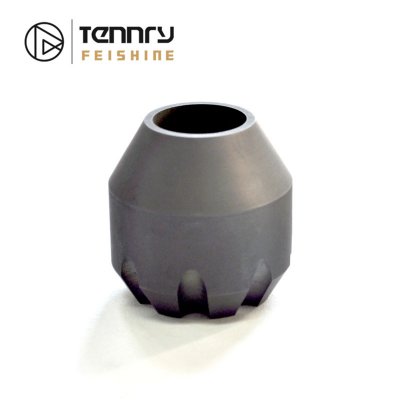

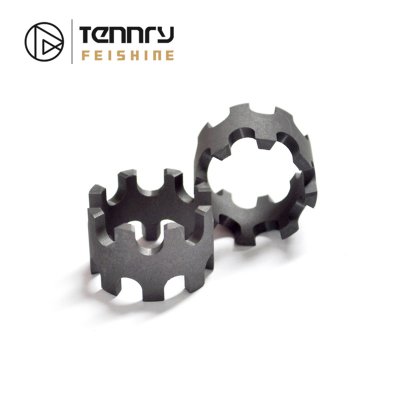

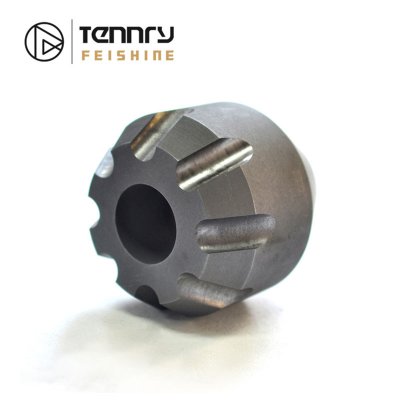

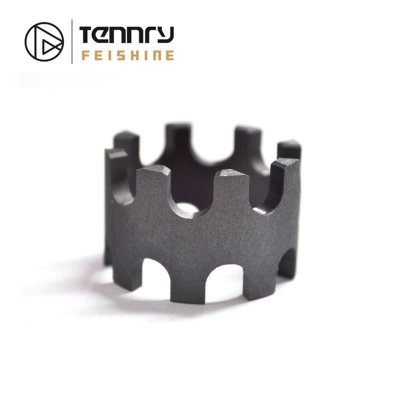

Feature of graphite part
1. High temperature resistance
2. Specific thermal shock resistance
3. Thermal and electric conductivity
4. Lubricant
5. Chemical stability
physical and chemical index
Items | Unit | Specification | |
Grain Size | mm | 0.045-4 | |
Bulk Density | g/cm3 | 1.65-1.95 | |
Resistivity | μΩ•m | 8.0-11.0 | |
Bending Strength | Mpa | 18-55 | |
Compressive Strength | Mpa | 36-100 | |
C.T.E | ×10-6/ ℃ | 2.9-3.0 | |
Ash | % | 0.1-0.3 | |
Round | Diameter | mm | 10-1100 |
Length | mm | 1-3050 | |
Square | Length | mm | ≤3050 |
Width | mm | ≤1200 | |
Height | mm | ≤800 | |
Products can be processed as order requirement or drawings. | |||
The usage of graphite part
With the above excellent property ,the graphite is widely used in metallurgy, mechanical, electrical,chemical, textile and other industries. Below is the classification.
Deceleration materials, reflective materials, shielding materials, nuclear fuel, support devices, etc We process special graphite product according to customer’s drawing.
Product Name | Industry | Application |
Crucible,Boat,Dish,etc. | Metallurgy | Melting,refining and analysis |
Dies,Molds,Ingot Chassis,etc. | EDM graphite electrodes,semiconductor manufacturing,iron,steel and nonferrous metal making,continuous casting,metallurgy pressing machine | |
Graphite Roller,etc. | Heat treatment of steel plate in furnace | |
Conduit,Skateboard,etc. | Aluminum molding | |
Graphite Pipe | Guard pipe for measuring temperature,blowpipe,etc | |
Graphite Block | Masonry furnace and other heat resistance material | |
Chemical Equipment | Chemistry | Heat exchanger,reaction tower,distillation columns,absorption equipment,centrifugal pumps,etc |
Electrolytic Plate | Salt solution and baking molten salt electrolyte | |
Electrolytic Mercury | NaCI electrolyte | |
Grounded Anode | Electrical anticorrosion | |
Motor Brush | Electricity | Commutator,slipping ring |
Current Collector | Skate,slide,trolley | |
Contact | Switches,relays | |
Mercury Ferry And Electronic Pipe | Electronics | Anode,grid pole,repeller pole,ignition pole of the Mercury rectifier and anode,grid electrode |
Graphite Bearing | Machinery | High temperature resistance sliding bearing |
Sealing Element | Sealing ring,stuffing box seal,packing seal | |
Product Element | Braking in plane and vehicle |
We usually quote within 24 hours after getting your detailed requirements,like size,quantity etc. .
If it is an urgent order, you can call us directly.
Yes, samples are available for test our quality.
Samples delivery time will be about 7-10 days.
The lead time is based on the quantity,production time about 7-12 days.For graphite product,apply Dual-use items license need about 45working days.
We accept FOB, CFR, CIF, EXW, etc. You can choose the most convenient way for you. Besides that, we can also shipping by Air and Express.
We are packed in customized wooden case, or according to your requirements.
