In Europe，Over 90% electrode material is graphite. Copper was once the mainly material, but now compare with the graphite electrode, it has lost all the advantages.
Advantage of graphite electrode
1. Faster producing speed: In general, the speed of the graphite machining is 2-5 times faster than the copper, and the discharge machining speed is 2-3 times faster .
2. Deformation resistance: Advantage is obvious in producing thin layer electrode.The softening point of the copper is around 1000 ℃, thus the copper is easy to be deformed due to heat.However, the sublimation temperature of the graphite is high to 3650 ℃ and the thermal expansivity is only 1/30 of the copper.
3. Lighter weight: The density of the graphite is only 1/5 of the copper, the burden of the machine can be effectively reduced when using the large EDM electrode.It is more suitable for large model making.
4. Less consumption: When EDM, the C atoms in the spark oil will be released and stick to the surface of the graphite electrode to form a protective slick in high temperature,which compensates the consumption of the graphite electrode.
Product range and services Saw-cut service We can cut your graphite block to the size you need and in the grade that best fits your application. Contact your local partner to discuss your desired dimensions and graphite grade.
Visit our online catalog to discover our full range of graphite and services.

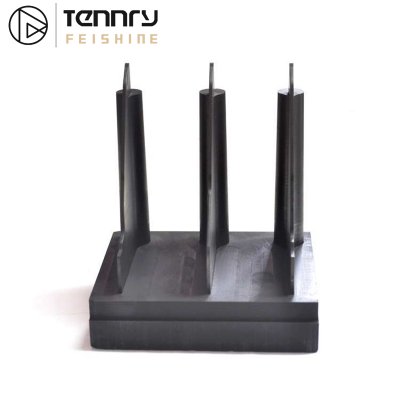

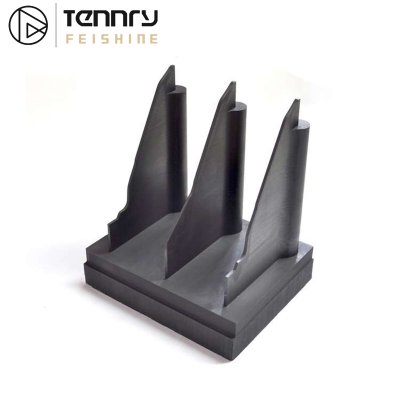

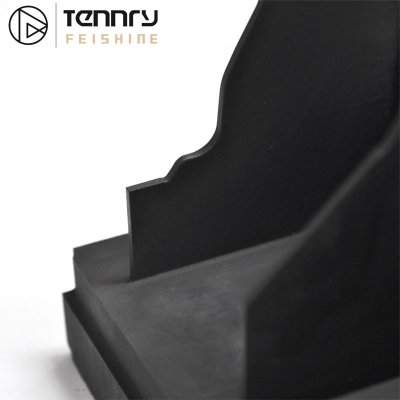

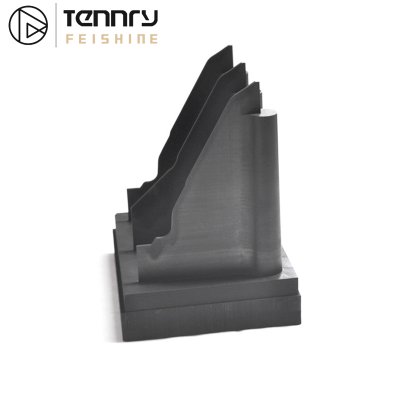

EDM graphite electrode
Ind ex | Units | FSWH-5 | FSWF-5 | FSW-7 | FSW-8 | FSK-5S | FSK-7 | FSK-8 | FSK-9 |
Bulk density | ≥g/cm3 | 1.68 | 1.78 | 1.85 | 1.91 | 1.85 | 1.83 | 1.86 | 1.9 |
Electric resistivity | μΩ.m | 13 | 9-10 | 11-13 | 11-13 | 8-10 | 11-14 | 10-14 | 10-14 |
Compressive strength | Mpa | 86 | 85 | 115 | 135 | 80 | 110 | 120 | 125 |
Flexural strength | Mpa | 38 | 43 | 51 | 60 | 40 | 50 | 55 | 60 |
Shore hardness | 51 | 56 | 65 | 70 | 55 | 67 | 72 | 75 | |
Ash content/ purification | ppm | 500/50 | 500/50 | 500/50 | 500/50 | 500/50 | 500/50 | 500/50 | 500/50 |
Average granularity | μm | 14-15 | 14-15 | 8-10 | 8-10 | 15 | 8 | 6 | 2-4 |
Coefficient of thermal expansion | ×10-6/℃ | 5 | 5.5 | 5.6 | 5.85 | 4.8 | 3.8 | 4 | 3.9 |
Young’s modulus | Gpa | 8.8 | 10.3 | 11 | 12 | 10 | 11 | 12 | 12 |
Product Name | Industry | Application |
Crucible,Boat,Dish,etc. | Metallurgy | Melting,refining and analysis |
Dies,Molds,Ingot Chassis,etc. | EDM graphite electrodes,semiconductor manufacturing,iron,steel and nonferrous metal making,continuous casting,metallurgy pressing machine | |
Graphite Roller,etc. | Heat treatment of steel plate in furnace | |
Conduit,Skateboard,etc. | Aluminum molding | |
Graphite Pipe | Guard pipe for measuring temperature,blowpipe,etc | |
Graphite Block | Masonry furnace and other heat resistance material | |
Chemical Equipment | Chemistry | Heat exchanger,reaction tower,distillation columns,absorption equipment,centrifugal pumps,etc |
Electrolytic Plate | Salt solution and baking molten salt electrolyte | |
Electrolytic Mercury | NaCI electrolyte | |
Grounded Anode | Electrical anticorrosion | |
Motor Brush | Electricity | Commutator,slipping ring |
Current Collector | Skate,slide,trolley | |
Contact | Switches,relays | |
Mercury Ferry And Electronic Pipe | Electronics | Anode,grid pole,repeller pole,ignition pole of the Mercury rectifier and anode,grid electrode |
Graphite Bearing | Machinery | High temperature resistance sliding bearing |
Sealing Element | Sealing ring,stuffing box seal,packing seal | |
Product Element | Braking in plane and vehicle |
We usually quote within 24 hours after getting your detailed requirements,like size,quantity etc. .
If it is an urgent order, you can call us directly.
Yes, samples are available for test our quality.
Samples delivery time will be about 7-10 days.
The lead time is based on the quantity,production time about 7-12 days.For graphite product,apply Dual-use items license need about 45working days.
We accept FOB, CFR, CIF, EXW, etc. You can choose the most convenient way for you. Besides that, we can also shipping by Air and Express.
We are packed in customized wooden case, or according to your requirements.
