Application:Metallurgy，electrode for fuel cell,water treatment etc.

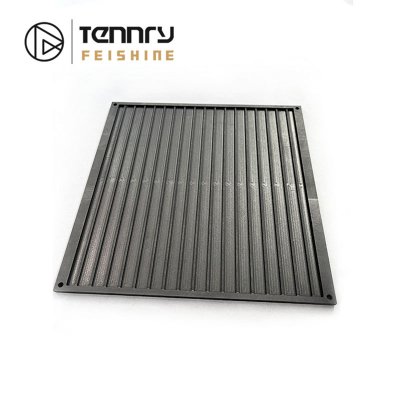

Dimensions:Customer Request, also could process groove as drawing
Type:Industrial Grade
Tennry Carbon focuses on technological innovation and production services in the field of graphite plate finishing, especially in drawing design, high-purity material application, processing speed optimization, delivery capacity guarantee and sample customization services.
Tennry Carbon emphasizes deep collaboration with customers in the drawing design process, relying on an experienced technical team and advanced design tools to provide full-process technical support from demand analysis to finished product delivery.
High-purity materials: quality assurance and industry adaptation
The core raw materials of Tennry Carbon graphite plates are high-purity graphite materials, which meet the stringent performance requirements of different industries through strict quality control.With a complete supply chain management and logistics system
Process engineering characteristic of graphite plate
1. High temperature resistance
2. Specific thermal shock resistance
3. Thermal and electric conductivity
4. Lubricant
5. Chemical stability
Graphite plate has the excellent characteristic, so mainly be used in metallurgy\ mechanical\electrical\chemical\textile branch.
Technical index:
Isostatic graphite technical data
Index |
Units | FSDK-4 | FSDK-6S | FSDK-7 | FSDK-8 | FSDK-9 | FSDW-7 | FSDW-8 |
Bulk density | ≥g/cm3 | 1.72 | 1.86 | 1.83 | 1.86 | 1.9 | 1.85 | 1.91 |
Electric resistivity | μΩ.m | 10-13 | 10-13 | 11-14 | 10-14 | 10-14 | 11-13 | 11-13 |
Compressive strength | Mpa | 65 | 100 | 110 | 120 | 125 | 115 | 135 |
Flexural strength | Mpa | 30 | 48 | 50 | 55 | 60 | 51 | 60 |
Shore hardness | 40 | 65 | 67 | 72 | 75 | 65 | 70 | |
Ash content/ purification | ppm | 500/50 | 500/50 | 500/50 | 500/50 | 500/50 | 500/50 | 500/50 |
Average granularity | μm | 25 | 12 | 8 | 6 | 2-4 | 8-10 | 8-10 |
Coefficient of thermal expansion | ×10-6/℃ | 5 | 4.2 | 3.8 | 4 | 3.9 | 5.6 | 5.85 |
Young’s modulus | Gpa | 9.2 | 11 | 11 | 12 | 12 | 11 | 12 |
Applications | >Vacuum furnace >Sintering | >Photovoltaic >Vacuum furnace >Melting gold crucible
| >EDM | >EDM >Melting gold crucible | >EDM >Melting gold crucible | >EDM >Photovoltaic | >EDM >Photovoltaic |
Mold graphite technical data
Index | Units | FSM-1 | FSM-2 | FSMK-3 | FSMK-5 | FSMK-5S | FSMW-4 | FSMW-5 |
Bulk density | ≥g/cm3 | 1.6 | 1.7 | 1.68 | 1.8 | 1.85 | 1.75 | 1.85 |
Electric resistivity | μΩ.m | 8 | 7.5 | 9-13 | 8-10 | 8-10 | 8.5 | 8.5 |
Compressive strength | Mpa | 28 | 36 | 45 | 70 | 80 | 65 | 85 |
Flexural strength | Mpa | 14 | 18 | 20 | 35 | 40 | 38 | 46 |
Shore hardness | 25 | 30 | 35 | 48 | 55 | 42 | 48 | |
Ash content/ purification | ppm | 2000/- | 2000/- | 1000/50 | 1000/50 | 1000/50 | 1000/50 | 1000/50 |
Average granularity | μm | 2000,4000 | 800,2000 | 15-45 | 15-45 | 15-45 | 14-45 | 14-45 |
Coefficient of thermal expansion | ×10-6/℃ | 5.8 | 5.7 | 5.7 | 4.9 | 4.8 | 5.46 | 4.75 |
Young’s modulus | Gpa | 7 | 8 | 8 | 9.5 | 10 | 9 | 11.8 |
Product Name | Industry | Application |
Crucible,Boat,Dish,etc. | Metallurgy | Melting,refining and analysis |
Dies,Molds,Ingot Chassis,etc. | EDM graphite electrodes,semiconductor manufacturing,iron,steel and nonferrous metal making,continuous casting,metallurgy pressing machine | |
Graphite Roller,etc. | Heat treatment of steel plate in furnace | |
Conduit,Skateboard,etc. | Aluminum molding | |
Graphite Pipe | Guard pipe for measuring temperature,blowpipe,etc | |
Graphite Block | Masonry furnace and other heat resistance material | |
Chemical Equipment | Chemistry | Heat exchanger,reaction tower,distillation columns,absorption equipment,centrifugal pumps,etc |
Electrolytic Plate | Salt solution and baking molten salt electrolyte | |
Electrolytic Mercury | NaCI electrolyte | |
Grounded Anode | Electrical anticorrosion | |
Motor Brush | Electricity | Commutator,slipping ring |
Current Collector | Skate,slide,trolley | |
Contact | Switches,relays | |
Mercury Ferry And Electronic Pipe | Electronics | Anode,grid pole,repeller pole,ignition pole of the Mercury rectifier and anode,grid electrode |
Graphite Bearing | Machinery | High temperature resistance sliding bearing |
Sealing Element | Sealing ring,stuffing box seal,packing seal | |
Product Element | Braking in plane and vehicle |
We usually quote within 24 hours after getting your detailed requirements,like size,quantity etc. .
If it is an urgent order, you can call us directly.
Yes, samples are available for test our quality.
Samples delivery time will be about 7-10 days.
The lead time is based on the quantity,production time about 7-12 days.For graphite product,apply Dual-use items license need about 45working days.
We accept FOB, CFR, CIF, EXW, etc. You can choose the most convenient way for you. Besides that, we can also shipping by Air and Express.
We are packed in customized wooden case, or according to your requirements.
